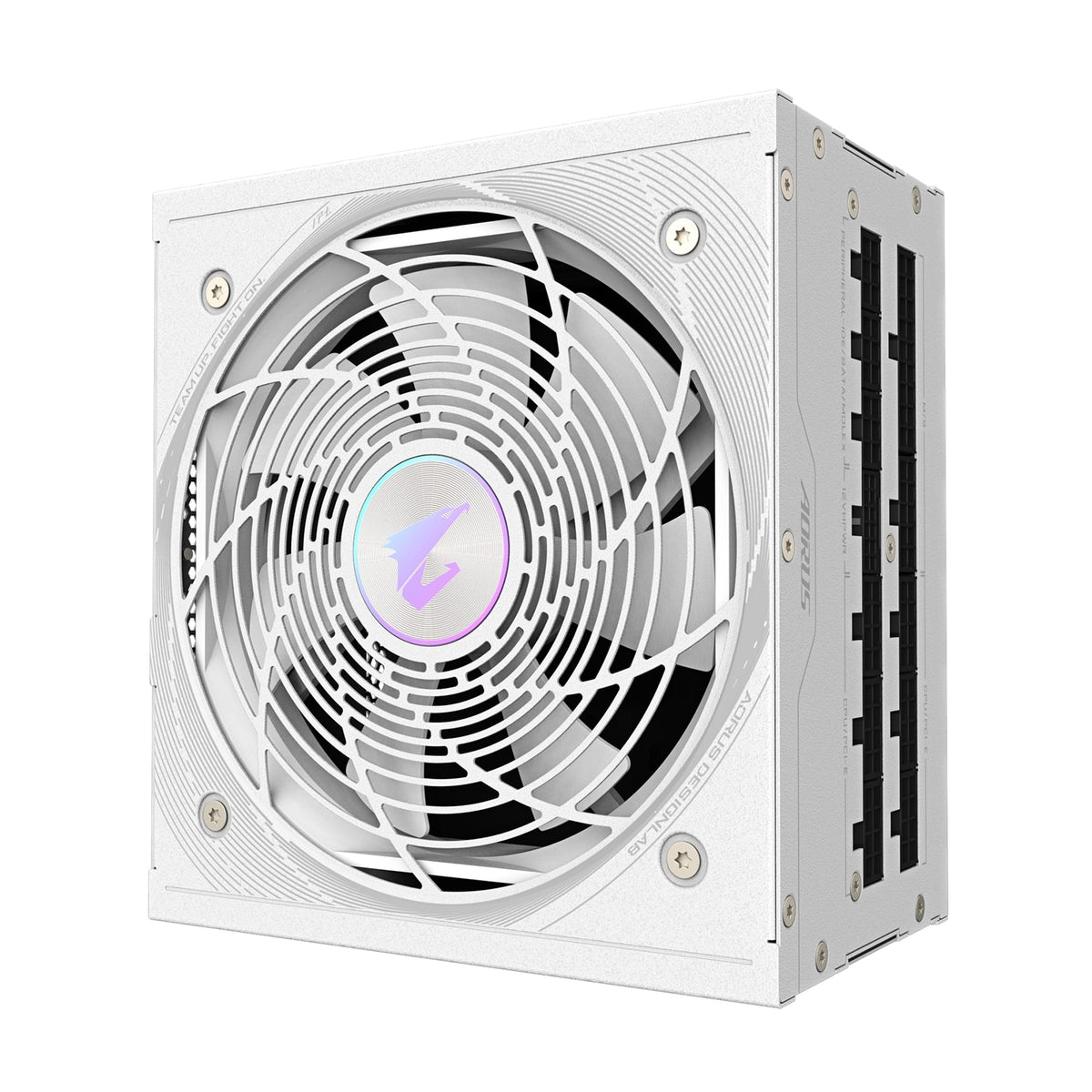

Gigabyte AORUS ELITE ICE 850W White PSU - Fully Modular, 80 PLUS Platinum, ATX 3.1, PCIe 5.0 Ready, 12VHPWR, Silent 120mm FDB Fan, 10-Year Warranty
£140.99
Skip to product information
The Gigabyte AORUS ELITE 850W ICE (GP-AE850PM PG5 ICE) is a premium white version of the AORUS ELITE Platinum series. It is fully modular, certified 80 PLUS Platinum, and supports ATX 3.1 and PCIe Gen 5.1 with a native 12VHPWR connector. Featuring single +12V rail architecture, 100% Japanese capacitors, a quiet 120mm Fluid Dynamic Bearing fan, compact 140mm length, swappable AORUS magnetic badge plate, and backed by a 10-year regional warranty, it delivers reliable performance for modern systems.
Key Features
ATX 3.1 and PCIe Gen 5.1 ready – Includes native 16-pin 12VHPWR cable supporting up to 600W delivery
80 PLUS Platinum certified – Approx.92% efficiency at 50% load
100% Japanese capacitors – Ensures stable voltage and long lifetime
120mm Smart FDB fan – Oil-damped, semi-passive operation under low load (<50%)
Compact size – Only 140mm deep for compatibility with space-constrained builds
Fully modular flat white cables – Reduces clutter and improves airflow
Single powerful +12V rail – Simplifies power delivery and enhances overcurrent handling
Full protection suite – Including OCP, OVP, UVP, OPP, OTP, SCP
Swappable AORUS magnetic badge plate – Aesthetic customization option
10-year limited warranty – Extended peace of mind
Full Technical Specification
Model / MPN:
Gigabyte AORUS ELITE 850W ICE (GP-AE850PM PG5 ICE)
Form Factor:
ATX (compatible with ATX 3.1)
Power Output:
850W continuous / peak excursion support up to 3x GPU power and 2x total system power
Efficiency Certification:
80 PLUS Platinum (~92% at 50% load)
Input Voltage:
100–240VAC
Input Frequency:
50–60Hz
Input Current:
6–12A
Power Factor Correction:
Active PFC (>?0.9 typical)
Fan Type:
120mm Smart Fluid Dynamic Bearing (FDB), semi-passive mode
Modularity:
Fully modular with flat white cables
12V Rail:
Single rail delivering all available power (~70.8A)
Protections:
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP)
Connectors:
1 x 24-pin ATX
2 x 4+4-pin EPS (CPU)
1 x Native 12VHPWR (16-pin for PCIe Gen5 GPUs)
4 x PCIe 6+2-pin
8 x SATA
3 x Molex (4-pin peripheral)
Hold-up Time:
16 ms
Dimensions (L x W x H):
140 x 150 x 86mm
MTBF:
100,000 hours
Certifications:
CE, FCC, RCM, EAC, cTUVus, CB, UKCA
Warranty:
10-year limited
