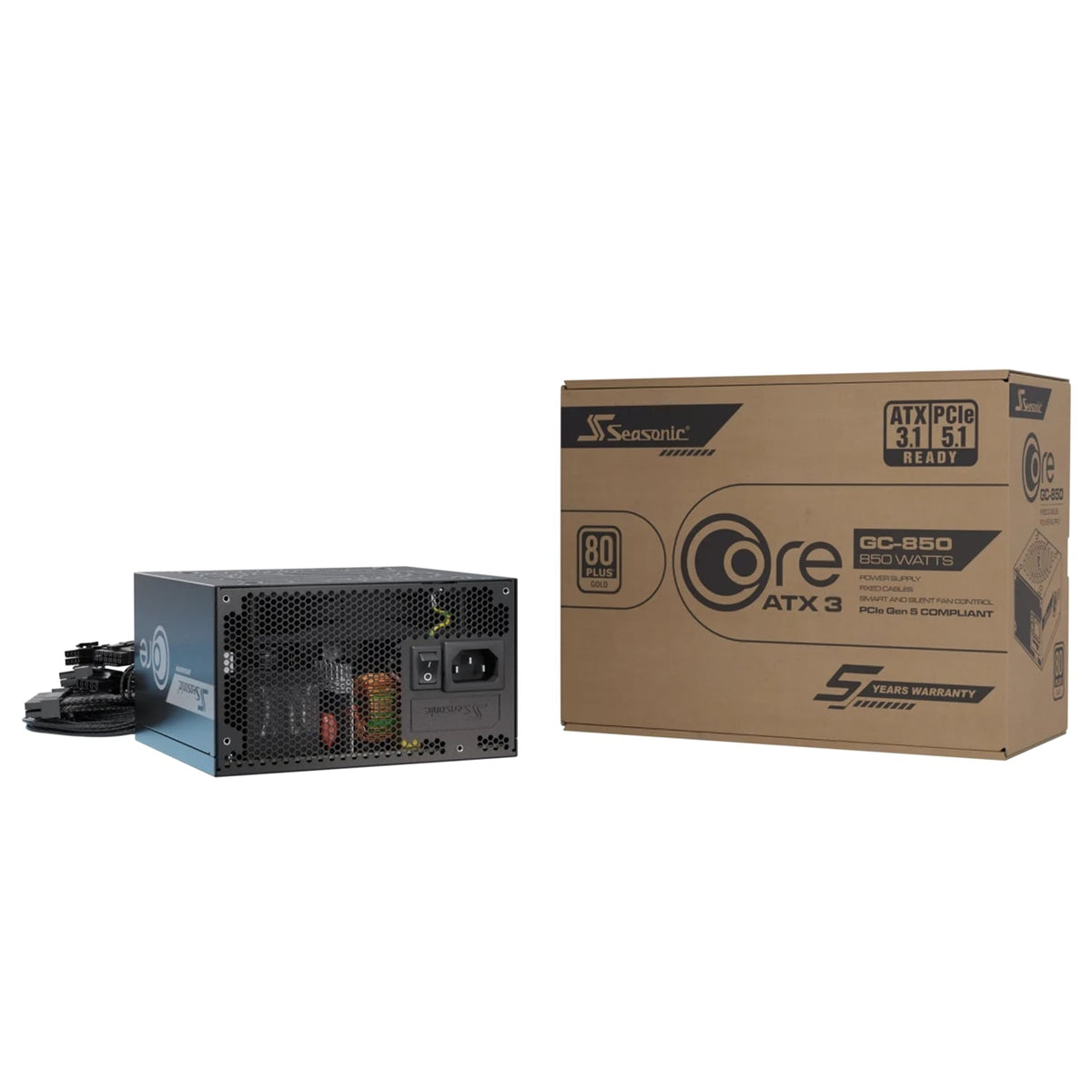

Seasonic CORE GC-850 850W 80 PLUS Gold ATX 3.1 Non-Modular PSU with 120mm HDB Fan, Braided Cables & 5 Year Warranty, Black
£114.99
Skip to product information
The Seasonic CORE GC 850W is a compact fixed-cable ATX 3.1 power supply designed for reliable gaming, home and business PC builds. Its 80 PLUS Gold certification provides efficient power delivery, while a 120mm Hydro Dynamic Bearing fan with Smart and Silent Fan Control helps keep cooling noise under control. A native 12V-2x6 connection supports modern PCIe 5.1 graphics cards, while conventional PCIe 6+2-pin connectors retain broad compatibility. The compact 140mm chassis and durable black braided-pattern cables make it suitable for a wide range of modern systems.
Key Features
80 PLUS Gold.
ATX 3.1 and PCIe 5.1 support.
Native 12V-2x6 connectivity for modern graphics cards.
Fixed / Non-Modular cable design.
120mm Hydro Dynamic Bearing (HDB) fan.
Smart and Silent Fan Control (S²FC).
Comprehensive OCP, OPP, OTP, OVP, SCP and UVP protection.
5-year manufacturer's warranty.
Full Specification
Model:
CORE GC 850W ATX 3.1
Manufacturer Part Number:
SRP-CGC851-A5A32SF
Output Power:
850W continuous power
Efficiency:
80 PLUS Gold
Voltage Rails:
Single +12V rail
+12V Output:
70A / 840W
ATX Form Factor:
ATX/EPS
ATX Standard:
ATX 3.1
PCIe Standard:
PCIe 5.1
Cabling:
Fixed / Non-Modular
Connectors:
1 x 20+4-pin ATX
2 x 4+4-pin CPU/EPS
1 x 12V-2x6
3 x 6+2-pin PCIe
2 x SATA
1 x 4-pin Molex
Fan:
120mm Hydro Dynamic Bearing (HDB) fan
Fan Speed Control:
Smart and Silent Fan Control (S²FC)
Power Input:
100-240V AC, 50/60Hz
Operating Temperature:
0-40°C
Power Output:
DC outputs: +12V, +5V, +3.3V, -12V and +5VSB
Cable Set:
Fixed individual black cables with braided pattern
Protection:
OCP - Over Current Protection
OPP - Over Power Protection
OTP - Over Temperature Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection
Special Features:
Native 12V-2x6 connectivity, compact 140mm chassis
Warranty:
5-year manufacturer's warranty
Dimensions without cable (L x W x H), (mm)
140 x 150 x 86
