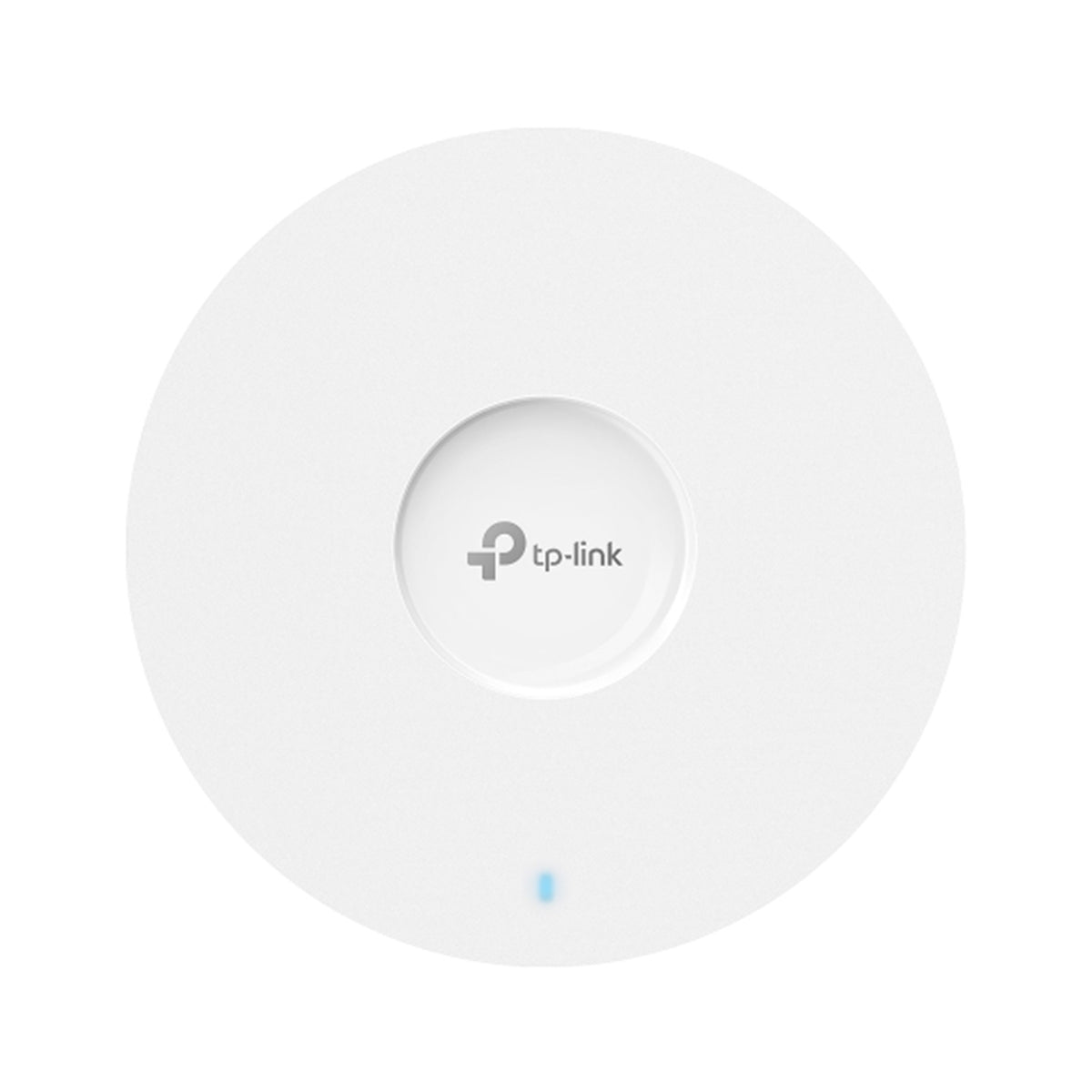

TP-Link Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Ultra Range Access Point
£199.99
Skip to product information
AX6000 Ceiling Mount WiFi 6 Access Point
Features
Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
Ultra-range wireless coverage by 4x4 MIMO dual-band internal antennas with high transmission power.
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
Integrates with the Omada SDN platform for centralized management.
Advanced Features: Omada Mesh, Seamless Roaming, and more.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Specifications
HARDWARE FEATURES
Interface
1 x 2.5 Gigabit PoE+ Port
Button
Reset
Power Supply
802.3at PoE
12 V / 2 A DC
Note:Power adapter is not included.
Max. Power Consumption
EU: 20.43W
US: 23.69W
Dimensions ( W x D x H )
8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm)
Antenna
Internal Omni
2.4 GHz: 4 x 4 dBi
5 GHz: 4 x 5 dBi
Bluetooth
V5.2
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage
185M squared(2000ft²)***
Concurrent Clients
510+**
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO (4*4 MU-MIMO DL&UL)
MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
HE160 (160 MHz Bandwidth)
Seamless Roaming(802.11k/v/r)
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)
Management Features
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
CertificationCE,FCC,RoHS
Package Content
EAP683 UR
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: 0–40 C(32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
